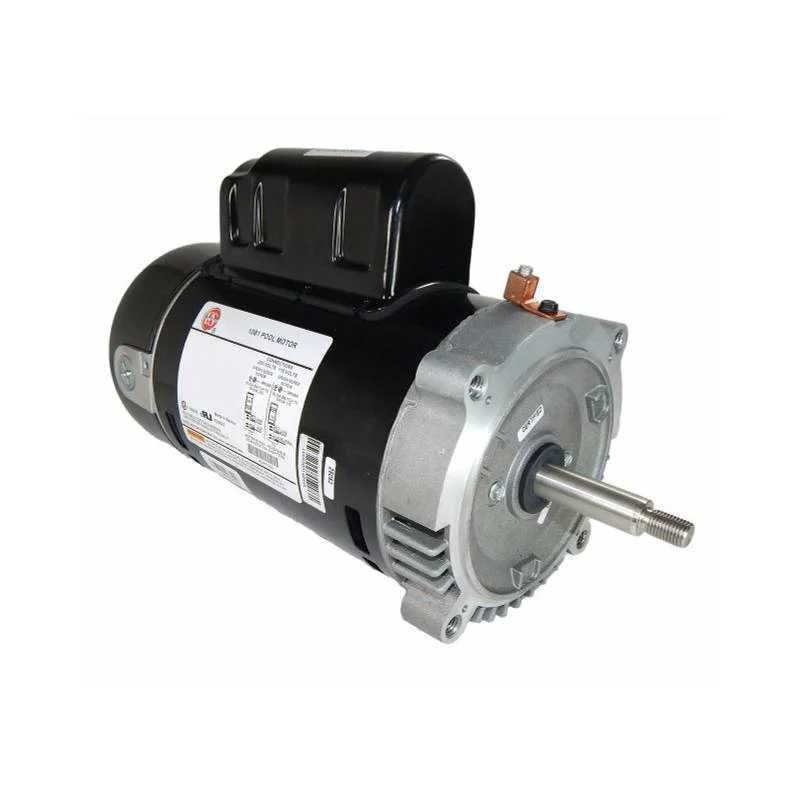

Nidec Motor AST275 2.75THP 115/230V C-Face Aquashield Motor
The Nidec Motor AST275 Swimming pool pump motor. Commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings. The motor has 4 threaded bolt holes on the face for mounting the pump to the motor. Bolt holes are 5 7/8″ on the centre measured across the shaft. Wiring diagram on the motor nameplate.
Nidec Corporation has established itself as an international conglomerate that handles “everything that spins and moves.” After starting with only four employees, Nidec has grown to include more than 140,000 workers across the globe.
Nidec Motor AST275 2.75THP 115/230V C-Face Aquashield Motor Features:
- 2 1/2 HP 3450 RPM 19.0/9.5 amps, 115/230V 60hz
- 2.75 THP (Total Horsepower)
- Automatic Overload Protection
- C-Face Mount, Round Body-no base
- Non-Reversible – CCW Rotation facing the shaft
- 56-J Frame; 5/8″ diameter threaded stainless steel shaft
