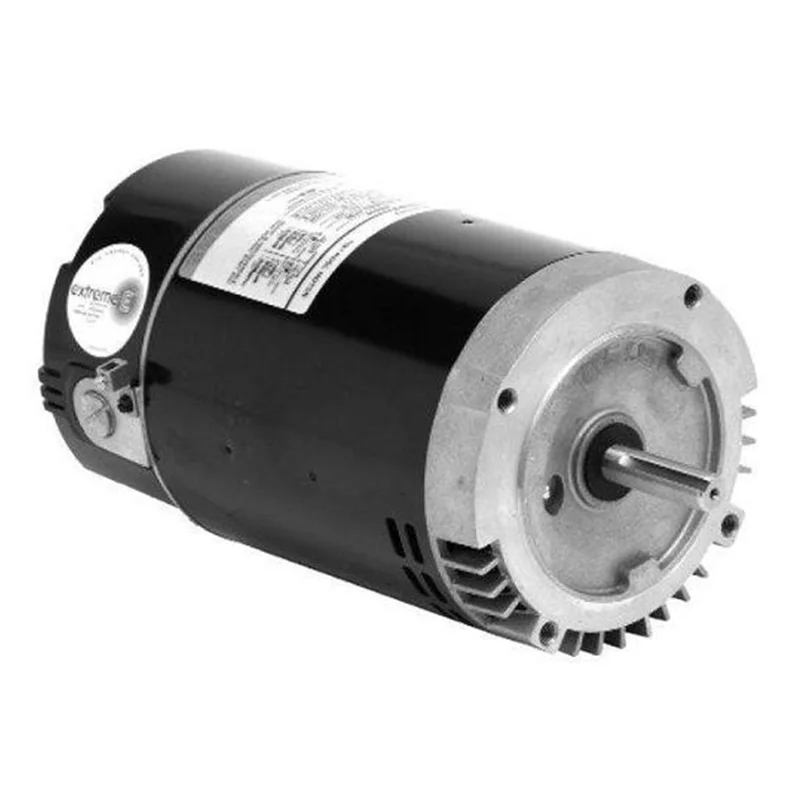

Nidec ASB2982T Square Flange Motor With Timer
The Nidec ASB2982T Square Flange Motor With Timer is a replacement product that is compatible for use with Jandy PlusHP Full Rate 2-Speed Pool Pump and Jandy FloPro Medium Head Two-Speed 1HP Parts. This energy efficient pool pump motor boasts fully integrated motor timer as well as programming for low and high speeds. This product is thermally protected and Class B insulated for maximum protection.
Nidec ASB2982T Square Flange Motor Features:
- Two Compartment
- Shaft Threads 7/16-20 UNF-2A
- Motor Frame: 56 Frame
- 50 Degree C Ambient
- 1081 Design
- Continuous Duty
- Class B Insulated
- 303 Stainless Steel Shaft
- Thermally Protected
- Fully Integrated Motor Timer
- Program for Low and High Speeds
- 7.4/1.3A 230V
- Speed Settings: Single Speed
- Horsepower: 1.0/0.12 HP
- High/Low Speed Override
- Triple bearing protection
- Premium energy efficient
- Product Type: Pool Motor
- Energy Efficiency: High Energy Efficiency
- Flange Type: Square Flange
