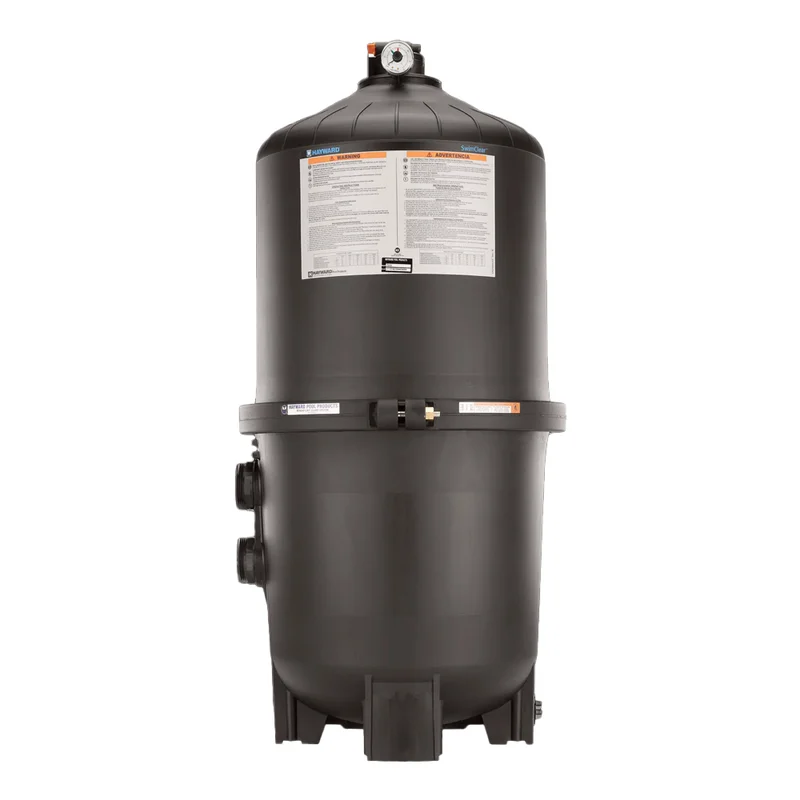

Hayward® Swimclear™ Multi-Element Cartridge Filter

Description

SwimClear™ Multi Element cartridge filters capture more dirt for superior water clarity without the need of supplemental media or back-washing, while the industry’s lowest head loss reduces energy costs.

Utilizing a cluster of reusable cartridge elements, SwimClear™ filters offer a choice of 225, 325, 425, 525, or 725 square feet of heavy-duty dirt-holding capacity for extra-long filter cycles, up to an entire season without cleaning. SwimClear filters will provide years of trouble-free operation and crystal clear, sparkling water.

Features:

• Self-aligned tank top and bottom
• High capacity, rapid release air relief valve
• Heavy-duty clamp
• 2″ full-flow internal piping
• PVC union coupling connection accepts 2″ or 2½” piping
• Full size 1½” integral drain

Benefits:

• No Backwashing Required: Cleanable cartridge elements eliminate the requirement for backwashing.
• Durable: The filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions.
• Secure: Heavy-duty, tamper-proof, one-piece flange clamp securely fastens the tank top and bottom and allows quick access to all internal components.

Specifications:

• Design Flow Rate: 150 GPM
• Drain Port Size: 1½”
• Effective Filtration Area: 525 SQFT
• Filter Type: Cartridge
• Number of Filter Elements: 4
• Turnover (8 hours): 72000
• Turnover (10 hours): 90000

Warranty:

• 1 year limited warranty

MPN:

• C5030 replaced by W3C5030
