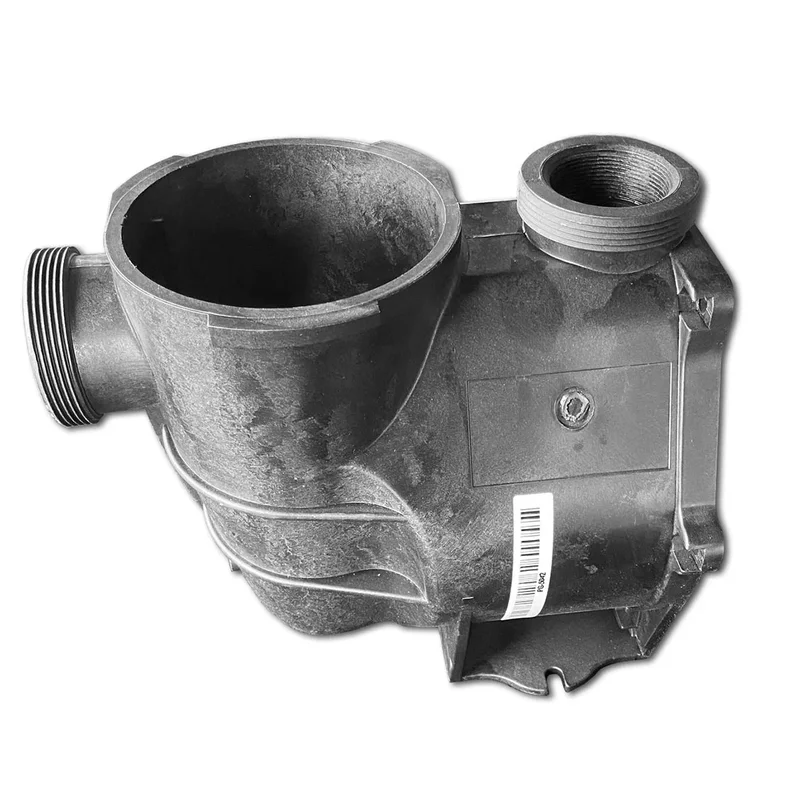

Excel Pump Strainer Housing
The Excel 1.5hp Pump Strainer Housing is a direct replacement for your Excel 1.5hp Inground Pool Pump.
See the diagram below to reference the Excel 1.5hp Inground Pool Pump parts:
| 1 | Strainer Cover |
| 2 | Strainer Cover O-Ring |
| 3 | Strainer Basket |
| 4 | Strainer Housing |
| 5 | Diffuser O-Ring |
| 6 | Screw ST4.2X38 |
| 7 | Diffuser |
| 8 | Impeller |
| 9 | Motor Cover O-Ring |
| 10 | Motor Cover |
| 11 | Gasket M10 |
| 12 | Screw 3/8-16*1 1/2 UNC |
| 13 | Seal Assembly |
| 14 | Supporting foot |
| 15 | Mounting foot |
| 16 | Screw M6X20 |
| 17 | Gasket M6 |
| 18 | Nut M6 |
| 19 | Nut 3/8-16 |
| 20 | Drain Plug Gasket |
| 21 | Drain Plug |
| 22 | Gasket M10 |
| 23 | Screw M10X25 |
| 24 | 1.5hp Motor |
