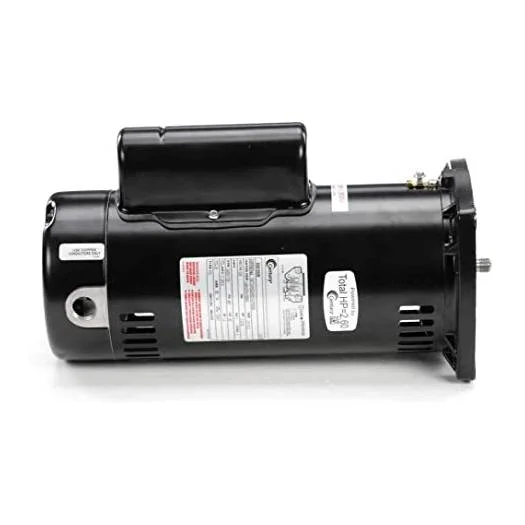

Century SQS1202R Square Flange Motor 2HP 230V 2SP EE 48Y ODP

Description

Century SQS1202R Square Flange Motor, 2HP, 230V, EE 48Y Frame, ODP, 2-Speed

The Century SQS1202R Square Flange 2-Speed Full-Rated Two-Compartment Pool Pump Motor; 2/0.33 HP, 3450/1725 RPM, 230 V, 48Y, Threaded Shaft.

The innovative Century brand has been pioneering the use of electric motors in the HVAC, leisure water, and commercial/industrial markets for over 100 years. Century brings cutting-edge, high-quality, and energy-efficient solutions to customers all over the world. From the innovative leader in pool pump motors, with the perfect combination of performance and power, the commercial & industrial line of products offers a wide selection of motors to fit your applications.

Century SQS1202R Square Flange Motor, 2HP, 230V, EE 48Y Frame, ODP, 2-Speed Features

• High service factor
• Energy efficient
• All copper windings
• Open Drip Proof – Ball Bearings
• Non-Reversible – CCW Rotation facing the shaft
• Automatic Overload Protection – Service Factor 1. 30
• 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH threaded shaft
• 2 HP 3450/1725 RPM, 2-Speed, 11. 3/3. 3 amps, 230V 60hz
• 48Y Frame-Square Flange; 5/8″ diameter threaded stainless steel shaft
