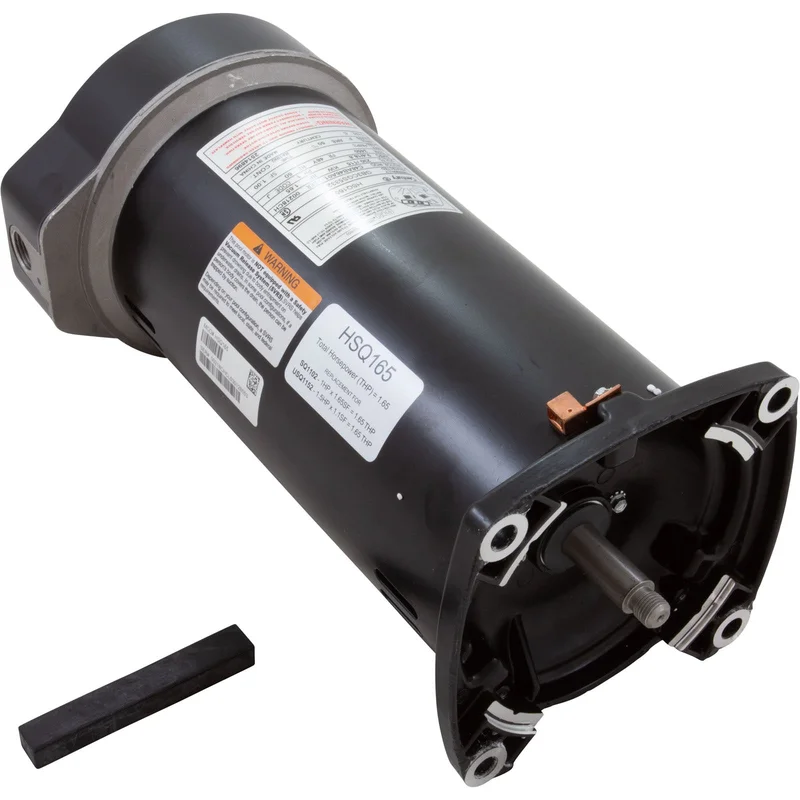

Century (A.O.Smith) Centurion Pro Motors – Square Flange – 1.65 THP Features and Benefits Replaces SQ1102 & USQ1152 The Centurion Pro design packs best-in-class features into a rugged, accessible layout that improves the installation experience Features a NEW Hybrid end frame design, PCB terminal board, voltage change device and definitive shaft access (7/16″ wrench) THP equals the Total Output (HP x service factor) and the replacement motor must equal or exceed motor being replaced 48Y Frame
- Replaces SQ1102 & USQ1152
- The Centurion Pro design packs best-in-class features into a rugged, accessible layout that improves the installation experience
- Features a NEW Hybrid end frame design, PCB terminal board, voltage change device and definitive shaft access (7/16″ wrench)
- THP equals the Total Output (HP x service factor) and the replacement motor must equal or exceed motor being replaced
- 48Y Frame
Pumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.
| Motor Type | Pool |
| Motor Amperage | 18.8/9.4A |
| voltage | 115v/230v |
| Frame Type | 48Y |
| Speed | 1 Speed (1-Spd) |
| Horsepower | 1.65hp |
| Motor Shaft Type | Threaded |
| Motor Style | Square Flange |
| Capacitor On Top | Yes |
| Manufacturer | Century |
